LS-PG36M555 Dc Planeatary Gear Motor
LS-PG36M555 Dc Planeatary Gear Motor

LS-PG36M555 Dc Planeatary Gear Motor

Browse All Categories
Place of Origin: China
Brand Name: NBLEISON
Model Number: LS-PG36M555
Certification: CE, ROHS, REACH
Minimum Order Quantity: 1PC
Price: USD 8. 58-USD 15. 0
Packaging Details: Carton, Pallet, Negotiated
Delivery Time: Standard samples about one week, bulk quantity about  3-4 weeks
Supply Ability: 100, 000pcs/month


Description:

1.Product name: LS-PG36M555 Dc Planetary Gear Motor

2. Motor type: carbon-brush commutator

3. Gear type: Straight gearwheel planet gearhead

4. Gearbox Diameter: 36mm

5. Gearbox housing material: 1045 Steel

6. Geartrain material: 40Cr Steel , Powder Metallurgy, Plastic Gear

7. Shaft material: 40Cr Steel

8. Output shaft support: Dual Ball bearing

9. Rotation direction: CW/CCW reversible

10. Rated Voltage: 6V/9V/12V/18V/24V/36V/48V

11. Rated Speed: 1rpm to 1500rpm customized

12.Rated Torque: 20-100kgf.cm

13.OEM & ODM Service： Available

14. Certificate: CE,ROHS,REACH

15.Encoder: Magnetic encoder

16.Shaft Configuration: D-cut,Keyway,Round ,Hexagon, Splined or other type,shaft length can customized

17. Customization item: voltage, speed , torque, flange , shaft, IP rating

18.Additional requirements: Lead wire, connector, coupling ,encoder,or other parts


Applications:

Robotics, Solar panel cleaning, valve, automatic door, Automatic animal feeding, robotics lawn mower


Gearbox Data

Number of stages 1 stages reduction 2 stages reduction 3 stages reduction 4 stages reduction 5 stages reduction
Reduction ratio 3.7 , 5.2 13.7, 19.2 26.9 50.9 , 71.2 99.5 , 139 188, 264 , 369 516 , 721 699, 977 , 1367 1911 , 2672 , 3736
Gearbox length “L” mm 25.1 32.3 38.5 44.7 50.9
Max. gear running torque 20.0kgf-cm 50.0kgf-cm 100.0kgf-cm 100.0kgf-cm 100.0kgf-cm
Max. gear breaking torque 60.0kgf-cm 150.0kgf-cm 300.0kgf-cm 300.0kgf-cm 300.0kgf-cm
Gearing efficiency 90% 81% 73% 65% 59%


Motor Data

Motor Name Rated Volt. V No Load Load Torque Stall Torque
Current Speed Current Speed Torque Output Power Torque Current
mA r/min mA r/min gf. cm W gf. cm A
RS-555123000 12 ≤140 3000 ≤600 2458 179 4. 51 1210 3. 1
RS-555124500 12 ≤200 4500 ≤900 3929 183 7. 42 1508 6. 0
RS-555126000 12 ≤320 6000 ≤1450 5244 215 11. 5 1722 9. 3
RS-555243500 24 ≤115 3500 ≤480 3041 246 7. 7 1720 2. 7
RS-555244500 24 ≤110 4500 ≤460 3984 189 7. 8 1713 3. 4
RS-555246000 24 ≤140 6000 ≤920 5305 243 13. 2 2065 5. 5
RS-555249500 24 ≤280 9500 ≤1900 8190 386 32. 5 2797 11. 7
*Note: It's only typical technical data, special requirement can be customzied.

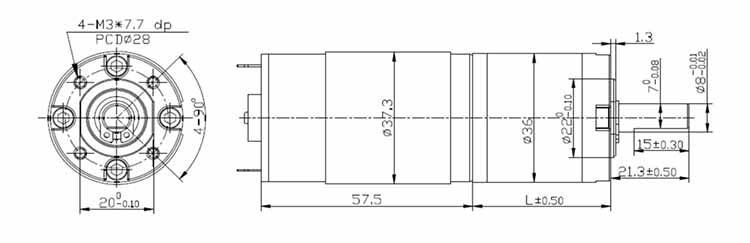

Mechanical Dimensions

15

*Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.


Competitive Advantage:

1.High torque, compact size, suitable for small space installations.

2.Wide range of motor speeds, producible from 1rpm to 2000rpm.

3.Various gear types available, including plastic gears, powder metallurgy, and steel gears, meeting different application requirements.

4.Customizable according to customer requirements, such as motor leads, terminals, shafts, optional encoders, brakes, etc.

5. 100% full inspection before shipment, all products comply with CE and ROHS certifications.

6. Fast delivery, samples of standard products available within a week, bulk delivery in 20-25 days
