| Place of Origin: | China |
| Brand Name: | NBLEISON |
| Model Number: | LS-PG25M370 |
| Certification: | CE, ROHS, REACH |
| Minimum Order Quantity: | 1PC |
| Price: | USD 8. 28-USD 15. 0 |
| Packaging Details: | Carton, Pallet, Negotiated |
| Delivery Time: | Standard samples about one week, bulk quantity about 3-4 weeks |
| Supply Ability: | 100, 000pcs/month |

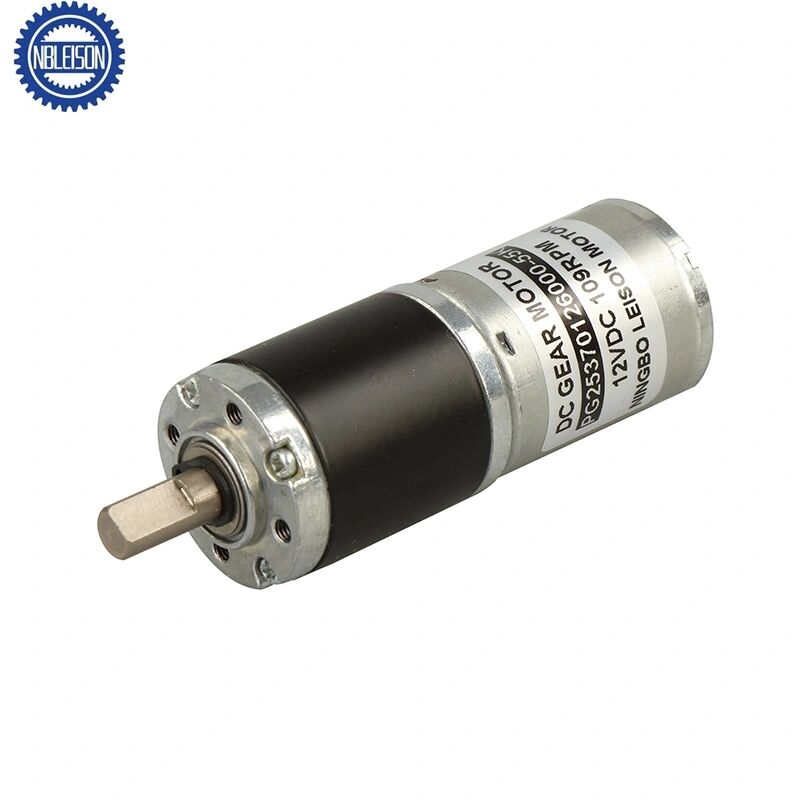

1.Product name: LS-PG25M370 Dc Planetary Gear Motor
2.Motor type: carbon-brush commutator
3.Gear type: Straight gearwheel planet gearhead
4.Gearbox Diameter: 25mm
5. Gearbox housing material: 1045 Steel
6. Geartrain material: 40Cr Steel , Powder Metallurgy, Plastic Gear
7. Shaft material: 40Cr Steel
8. Output shaft support: Sleeve Bearing
9. Rotation direction: CW/CCW reversible
10. Rated Voltage: 6V/9V/12V/18V/24V/36V/48V
11. Rated Speed: 1rpm to 1500rpm customized
12.Rated Torque: 3-10kgf.cm
13.OEM & ODM Service： Available
14. Certificate: CE,ROHS,REACH
15.Encoder: Magnetic encoder
16.Shaft Configuration: D-cut,Keyway,Round ,Hexagon, Splined or other type,shaft length can customized
17. Customization item: voltage, speed , torque, flange , shaft, IP rating
18.Additional requirements: Lead wire, connector, coupling ,encoder,or other parts
Applications:
Peristaltic pump l Micro CNC machine Automated teller machine lCard machine | Remote control curtain / Electric push rod [ Mimeo-graph / Household appliances Office equipment Automatic actuators, etc,Auto window opener, Robotics
Gearbox Data
| Number of stages | 1 stages reduction | 2 stages reduction | 3 stages reduction | 4 stages reduction | 5 stages reduction |
| Reduction ratio | 3.6, 4.25 | 13 , 15.3 18 | 36, 46.7, 55 65,76.8 | 114, 130 , 168, 198 , 234,276,326 | 467, 604 , 713,842 994 , 1174 , 1386 |
| Gearbox length “L” mm | 18.3 | 25 | 30.8 | 36.6 | 42.4 |
| Max. Gear Running torque | 3.0kgf-cm | 5.0kgf-cm | 10.0kgf-cm | 10.0kgf-cm | 10.0kgf-cm |
| Max. Gear Breaking torque | 9.0kgf-cm | 15.0kgf-cm | 30.0kgf-cm | 30.0kgf-cm | 30.0kgf-cm |
| Gearing efficiency | 90% | 81% | 73% | 65% | 59% |
Motor Data
| Motor Name | Rated VoltV | No Load | Load Torque | Stall Torque | |||||
| Current | Speed | Current | Speed | Torque | Output Power | Torque | Current | ||
| mA | r/min | mA | r/min | gf.cm | W | gf.cm | mA | ||
| RF-370063000 | 6 | ≤130 | 3000 | ≤380 | 2200 | 15 | 0.33 | 130 | 1300 |
| RF-370064500 | 6 | ≤150 | 4500 | ≤540 | 3500 | 24 | 0.8 | 160 | 1850 |
| RF-370066000 | 6 | ≤220 | 6000 | ≤700 | 5250 | 30 | 1.6 | 230 | 2500 |
| RF-370123000 | 12 | ≤30 | 3000 | ≤130 | 2200 | 15 | 0.33 | 125 | 420 |
| RF-370126000 | 12 | ≤130 | 6000 | ≤180 | 5264 | 30 | 1.6 | 243 | 1260 |
| RF-370246000 | 24 | ≤65 | 6000 | ≤100 | 5296 | 30 | 1.6 | 259 | 725 |

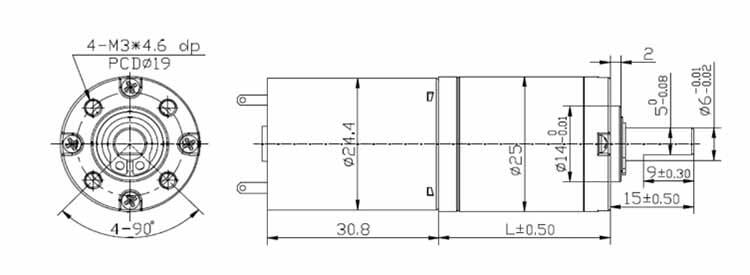

Mechanical Dimensions
*Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
Competitive Advantage:
1.High torque, compact size, suitable for small space installations.
2.Wide range of motor speeds, producible from 1rpm to 2000rpm.
3.Various gear types available, including plastic gears, powder metallurgy, and steel gears, meeting different application requirements.
4.Customizable according to customer requirements, such as motor leads, terminals, shafts, optional encoders, brakes, etc.
5. 100% full inspection before shipment, all products comply with CE and ROHS certifications.
6. Fast delivery, samples of standard products available within a week, bulk delivery in 20-25 days
