LS-PG16M050 Dc Planeatary Gear Motor
LS-PG16M050 Dc Planeatary Gear Motor

LS-PG16M050 Dc Planeatary Gear Motor

Browse All Categories
Place of Origin: China
Brand Name: NBLEISON
Model Number: LS-PG16M050
Certification: CE, ROHS, REACH
Minimum Order Quantity: 1PC
Price: USD 8. 98-USD 15. 0
Packaging Details: Carton, Pallet, Negotiated
Delivery Time: Standard samples about one week, bulk quantity about  3-4 weeks
Supply Ability: 100, 000pcs/month


1. Product name: LS-PG16M050 Dc Planetary Gear Motor

2. Motor type: carbon-brush commutator

3. Gear type: Straight gearwheel planet gearhead

4. Gearbox Diameter: 16mm

5. Gearbox housing material: 1045 Steel

6. Geartrain material: 40Cr Steel , Powder Metallurgy, Plastic Gear

7. Shaft material: 40Cr Steel

8. Output shaft support: Sleeve Bearing

9. Rotation direction: CW/CCW reversible

10. Rated Voltage: 6V/9V/12V/18V/24V/36V/48V

11. Rated Speed: 1rpm to 1500rpm customized

12.Rated Torque: 0.1-4kgf.cm

13.OEM & ODM Service： Available

14. Certificate: CE,ROHS,REACH

15.Encoder: Magnetic encoder

16.Shaft Configuration: D-cut,Keyway,Round ,Hexagon, Splined or other type,shaft length can customized

17. Customization item: voltage, speed , torque, flange , shaft, IP rating

18.Additional requirements: Lead wire, connector, coupling ,encoder,or other parts


Applications:

Robotics, Electric door lock, Medical equipment, Electric valve, Camera,Toys, optical instruments


Specifications:

Motor with Gearbox

Number of stages 1 stages reduction 2 stages reduction 3 stages reduction 4 stages reduction 5 stages reduction
Reduction ratio 4, 4.75 12.3 , 16 42.8 , 64 , 76 150, 256 , 304 712, 1024 , 1216 , 1444
19, 22.5 90 , 107 361 , 428 1715 , 2036 , 2418
Gearbox Length “L” mm 13.7 17.3 20.9 24.5 28.1
Max. Gear Running torque 1 .0kgf-cm 1.5kgf-cm 4.0kgf-cm 4.0kgf-cm 4.0kgf-cm
Max. Gear Breaking torque 3.0kgf-cm 4.5kgf-cm 12.0kgf-cm 12.0kgf-cm 12.0kgf-cm
Gearing efficiency 90% 81% 73% 65% 59%


Gearbox Data

Motor Name Rated Volt.   V No Load Load Torque Stall Torque
Current Speed Current Speed Torque Output Power Torque Current
mA r/min mA r/min gf. cm W gf. cm mA
RF-050039000 3 ≤120 9200 ≤370 7100 7. 3 0. 5 32. 2 1250
RF-050069000 6 ≤50 9000 ≤180 7000 7. 5 0. 52 32 600
RF-0500129000 12 ≤20 9400 ≤90 7200 7. 2 0. 5 31. 4 280
RF-05001212000 12 ≤36 12000 ≤160 9600 10 0. 96 50 580
RF-0502414000 24 ≤30 14000 ≤100 10500 12 1. 2 49 350
*Note: It's only typical technical data, special requirement can be customzied.

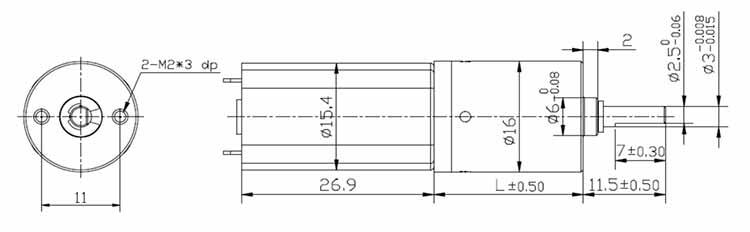

Dimensions

10

*Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.


Competitive Advantage:

1.High torque, compact size, suitable for small space installations.

2.Wide range of motor speeds, producible from 1rpm to 2000rpm.

3.Various gear types available, including plastic gears, powder metallurgy, and steel gears, meeting different application requirements.

4.Customizable according to customer requirements, such as motor leads, terminals, shafts, optional encoders, brakes, etc.

5. 100% full inspection before shipment, all products comply with CE and ROHS certifications.

6. Fast delivery, samples of standard products available within a week, bulk delivery in 20-25 days
