Oct 19,2026

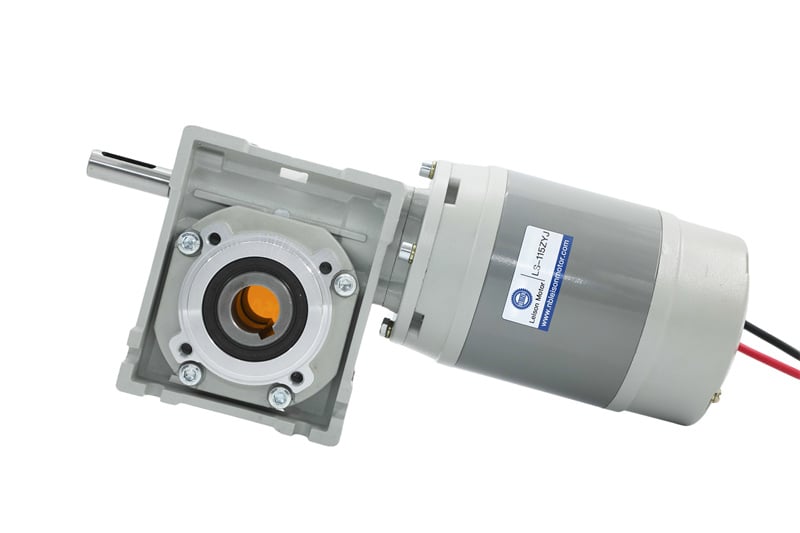

Meet the 115ZYJRV50-03-061 24V High Torque DC Gear Motor (113 RPM)
Short answer: The 115ZYJRV50-03-061 is a 24V DC worm gear motor rated 1000W with a 25:1 reduction, 113 RPM output speed and IP67 protection. Derived from rated power and speed, its output torque is approximately 84.5 N·m. It solves the classic conveyor conflict — you need high torque at low belt speed, and the drive has to survive dust and washdown for years.
115ZYJRV50-03-061 Specifications at a Glance
| Item | Value |
| Model | 115ZYJRV50-03-061 |
| Voltage | 24V DC |
| Power | 1000W |
| Gear ratio | 25:1 |
| Output speed | 113 RPM |
| Output torque (derived from 1000W / 113 RPM; verify against nameplate) | ≈84.5 N`m |
| Item | Value |
| Ingress protection | IP67 |

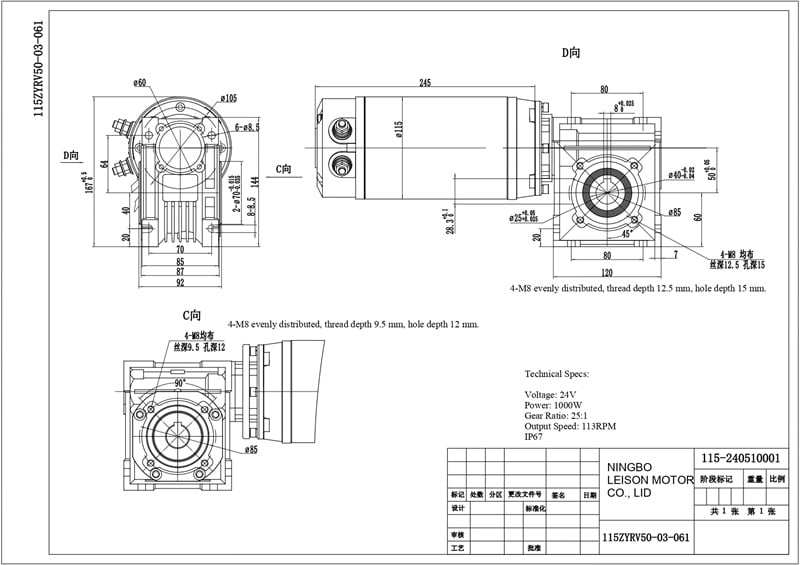

| Body diameter / overall length | Ø115 mm / 245 mm |
| Output shaft | Ø25 (+0.05/+0.025), 50 mm long, 8 mm keyway (+0.025/0) |
| Mounting flange | 120 × 120 mm, 4-M8 evenly distributed, thread depth 12.5 mm, hole depth 15 mm |
| Rear mounting holes | 4-M8 evenly distributed, thread depth 9.5 mm, hole depth 12 mm |

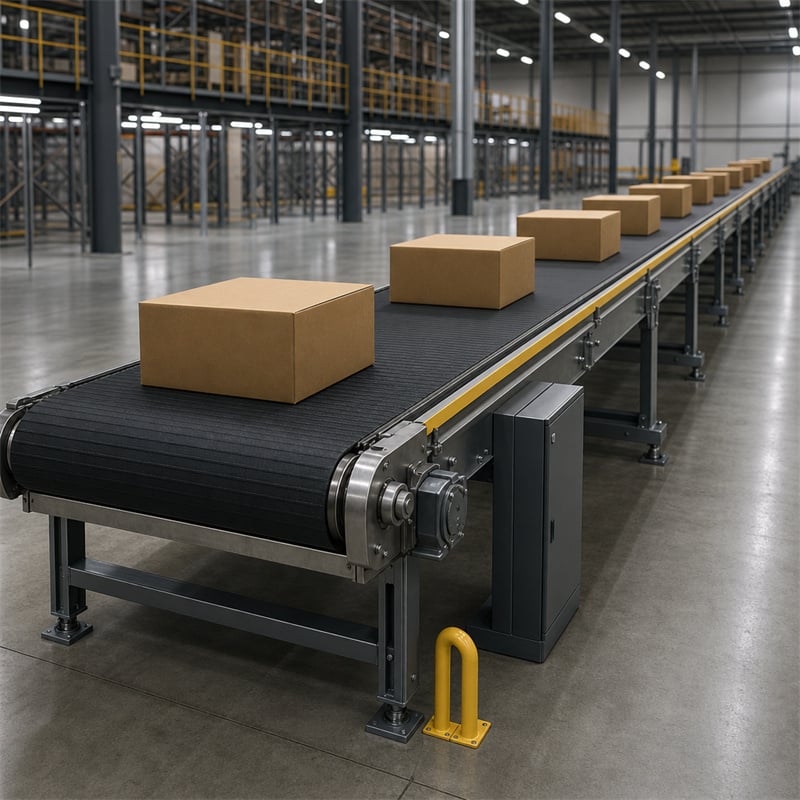

Why Conveyors Prefer a Worm Drive Gear Motor
A single worm stage delivers a 25:1 ratio with the output shaft at 90° to the motor axis, so the unit tucks inside the conveyor side frame instead of consuming valuable width. The worm set is also self-locking under most load conditions: stop the line and the belt will not roll back under load — critical on incline and heavy-duty sections. Add quieter running and better shock tolerance than a comparable planetary unit, and you have the reason a 24 volt worm gear motor dominates parcel and logistics equipment.
