Applications:
labeling machine, textile industry equipment, biochemical analyzer
Description:

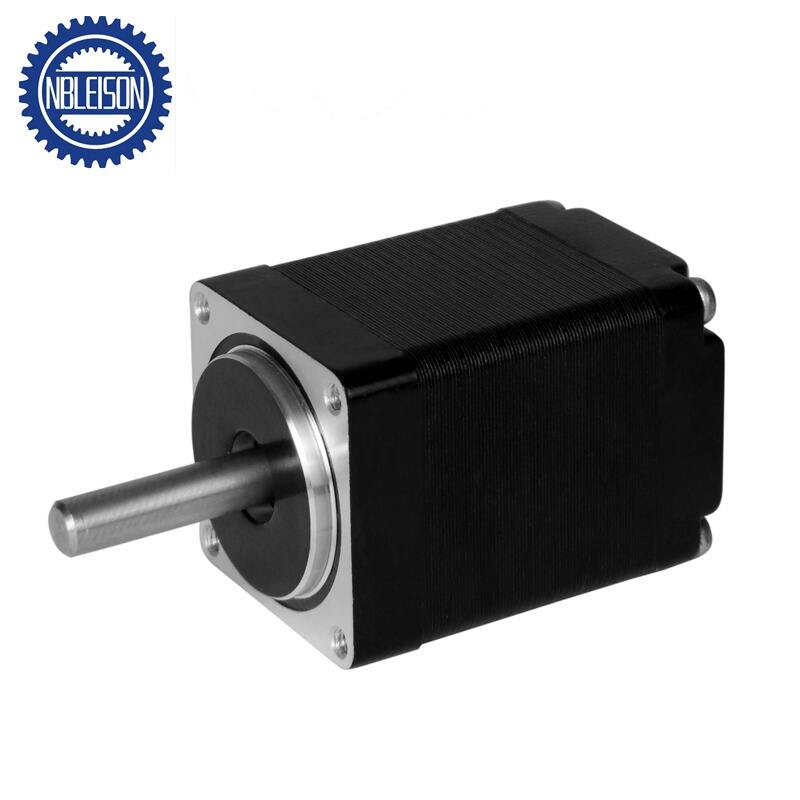

| Product name | Nema 8 1.8 Degree Stepper Motor |
| Motor type | stepper motor |
| Construction | Hybrid Type |
| Number of Phases | 2 Phase |
| Motor Dimension | 20.3X20.3XL（mm） |
| Holding Torque | 0.14Kg.cm-0.24Kg.cm |
| Step Revolution | 1.8 degree |
| IP Rating | IP40 |
| Operating Temp | -20 ℃ to +50℃ |
| Insulation Class | Class B (130°C) |
| OEM & ODM Service | Available |
| Certificate | CE,ROHS,REACH |
| Encoder | OK |

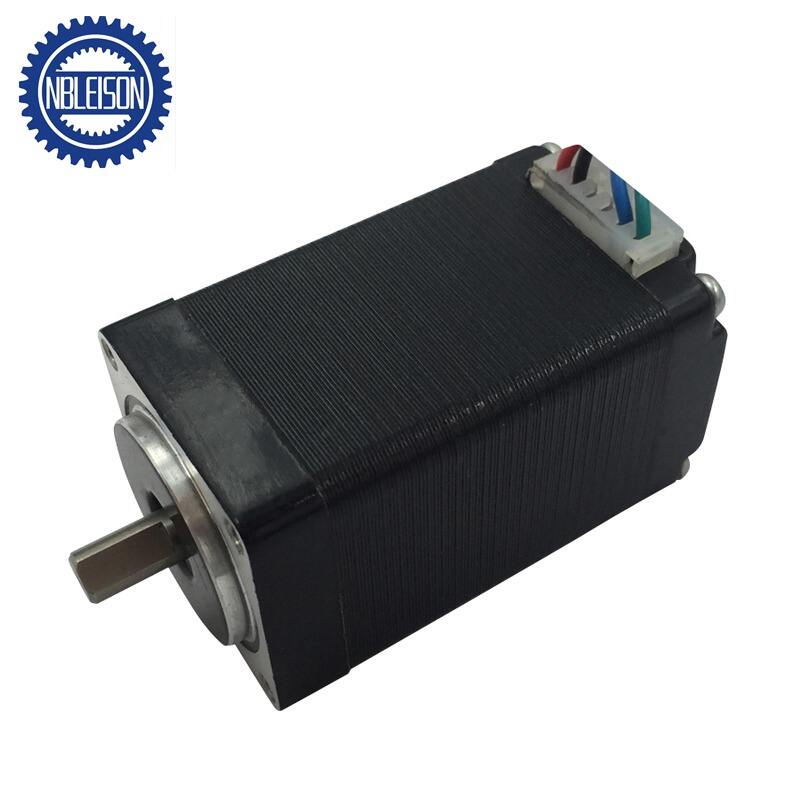

| Shaft Configuration | D-cut,Round or other type,shaft length can customized |
| Customization item | voltage, speed , torque, shaft, IP rating |
| Additional requirements | Lead wire, connector ,encoder,brake or other parts |
Applications:
labeling machine, textile industry equipment, biochemical analyzer
| Motor Data |
|
Model |
Step Angle (°) |
Motor Length (mm) |
Rated Current(A) |
Phase Resistance(Ω) |
Phase Inductance(mH) |
Holding Torque (N.cmMin) |
Detent Torque (N.cmMax) |
Rotor Inertia (g.cm2) |
Lead |
Motor |
|
8HY2402 |
1.8 |
28 |
0.2 |
23 |
8.2 |
1.4 |
0.2 |
2.5 |
4 |
50 |
|
8HY2406 |
1.8 |
28 |
0.6 |
3.2 |
0.9 |
1.4 |
0.2 |
2.5 |
4 |
50 |
|
8HY3402 |
1.8 |
34 |
0.2 |
25 |
8.4 |
1.8 |
0.3 |
3.2 |
4 |
70 |
|
8HY3406 |
1.8 |
34 |
0.6 |
4.5 |
1.2 |
1.8 |
0.3 |
3.2 |
4 |
70 |
|
8HY4402 |
1.8 |
40 |
0.2 |
32 |
8.8 |
2.6 |
0.5 |
4.5 |
4 |
82 |
|
8HY4406 |
1.8 |
40 |
0.6 |
5.8 |
1.6 |
2.6 |
0.5 |
4.5 |
4 |
82 |
|
Note: It's only typical technical data,special requirement can be customized. |
||||||||||
| Mechanical Dimensions |
*Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
