| Place of Origin: | China |
| Brand Name: | NBLEISON |
| Model Number: | Nema 23 |
| Certification: | CE, ROHS, REACH |
| Minimum Order Quantity: | 1PC |
| Price: | USD 6. 58-USD 15. 0 |
| Packaging Details: | Carton, Pallet, Negotiated |
| Delivery Time: | Standard samples about one week, bulk quantity about 3-4 weeks |
| Supply Ability: | 100, 000pcs/month |
Description:

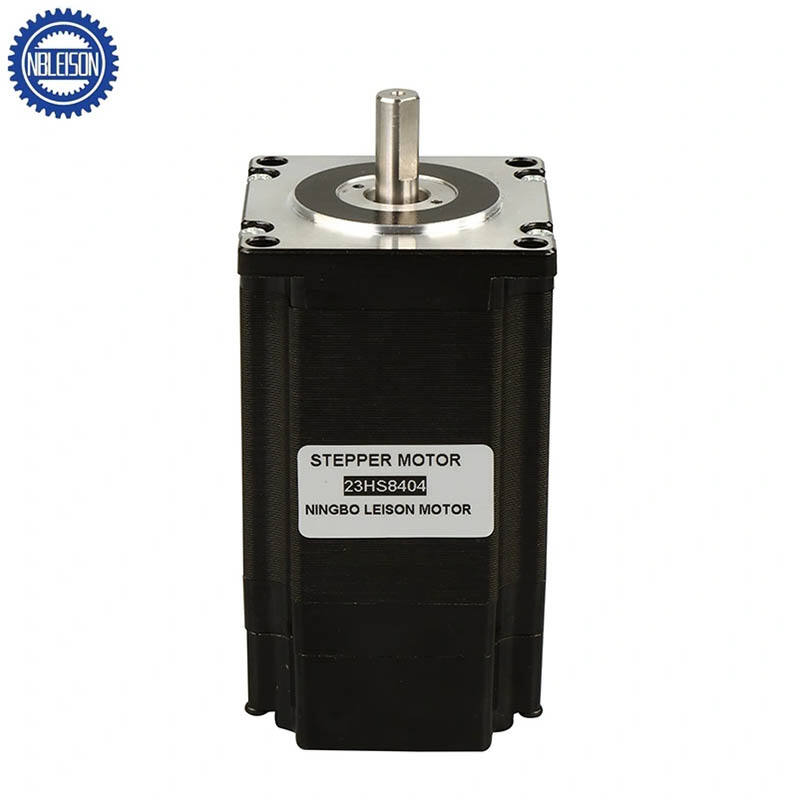

1. Product name: Nema 23 stepper motor
2. Motor type: stepper motor
3. Construction: Hybrid Type
4. Number of Phases: 2 Phase
5. Motor Dimension: 57×57×L(Body length) mm
6. Holding Torque: 3.9Kg.cm-35Kg.cm
7. Step Revolution: 1.8 degree
8. IP Rating: IP40
9. Operating Temp:-20°to +50°
10. Insulation Class: Class B， (130°C)
11. OEM & ODM Service: Available
12. Certificate: CE,ROHS,REACH
13. Encoder: OK
14. Shaft Configuration: D-cut,Round or other type,shaft length can customized
15. Customization item: voltage, speed , torque, shaft, IP rating
16. Additional requirements: Lead wire, connector ,encoder,brake or other parts
Applications:
Typical application: labeling machine, textile industry equipment, biochemical analyzer, carving machine,CNC Machine
Motor Data
| Model | Step Angle (°) | Motor Length (mm) | Rated Current(A) | Phase Resistance(Ω) | Phase Inductance(mH) | Holding Torque (N.mMin) | Detent Torque (N.cm Max) | Rotor Inertia (g.cm2) | LeadWire (No.) | Motor Weight(g) |
| 23HS0405 | 1.8 | 41 | 0.62 | 12 | 24 | 0.55 | 2.5 | 150 | 4 | 470 |
| 23HS0408 | 1.8 | 41 | 2 | 1.2 | 2.5 | 0.55 | 2.5 | 150 | 4 | 470 |
| 23HS4412 | 1.8 | 45 | 0.62 | 12 | 26 | 0.8 | 2.8 | 190 | 4 | 520 |
| 23HS4425 | 1.8 | 45 | 2.5 | 1 | 2.2 | 0.8 | 2.8 | 190 | 4 | 520 |
| 23HS5406 | 1.8 | 51 | 0.62 | 13 | 28 | 1 | 2.8 | 190 | 4 | 520 |
| 23HS5425 | 1.8 | 51 | 2.5 | 1.2 | 3.2 | 1 | 2.8 | 190 | 4 | 520 |
| 23HS6602 | 1.8 | 56 | 1.5 | 3.2 | 5.5 | 0.9 | 3.5 | 280 | 6 | 590 |
| 23HS6430 | 1.8 | 56 | 3 | 0.8 | 2.4 | 1.1 | 3.5 | 280 | 4 | 680 |
| 23HS6404 | 1.8 | 56 | 4.2 | 0.4 | 1.2 | 1.1 | 3.5 | 280 | 4 | 680 |
| 23HS7401 | 1.8 | 64 | 1 | 7.5 | 20 | 1.5 | 5 | 380 | 4 | 850 |
| 23HS7430 | 1.8 | 64 | 3 | 0.8 | 2.3 | 1.5 | 5 | 380 | 4 | 850 |
| 23HS7404 | 1.8 | 64 | 4.2 | 0.55 | 1.2 | 1.5 | 5 | 380 | 4 | 850 |
| 23HS8430 | 1.8 | 76 | 3 | 1 | 3.5 | 1.8 | 6 | 440 | 4 | 1050 |
| 23HS8404 | 1.8 | 76 | 4.2 | 0.6 | 1.8 | 1.8 | 6 | 440 | 4 | 1050 |
| 23HS1430 | 1.8 | 100 | 3 | 1.4 | 5.5 | 2.5 | 10 | 680 | 4 | 1250 |
| 23HS1404 | 1.8 | 100 | 4.2 | 0.8 | 3 | 2.5 | 10 | 680 | 4 | 1250 |
| 23HS2430 | 1.8 | 112 | 3 | 1.6 | 6.8 | 2.8 | 12 | 800 | 4 | 1400 |
| 23HS2404 | 1.8 | 112 | 4.2 | 0.9 | 3.8 | 2.5 | 12 | 800 | 4 | 1400 |
| * Note: It's only typical technical data,special requirement can be customized. | ||||||||||
Mechanical Dimensions
Wiring Diagram
*Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
Competitive Advantage:
1.Enables precise control of motor position and speed, achieving accurate control objectives.
2. Low operating noise, long lifespan, suitable for continuous operation.
3.Customizable according to customer requirements, such as motor leads, terminals, shafts, optional gearboxes, encoders, brakes, etc.
4.100% full inspection before shipment, all products comply with CE and ROHS certifications.
5. Fast delivery, samples of standard products available within a week, bulk delivery in 20-25 days.
