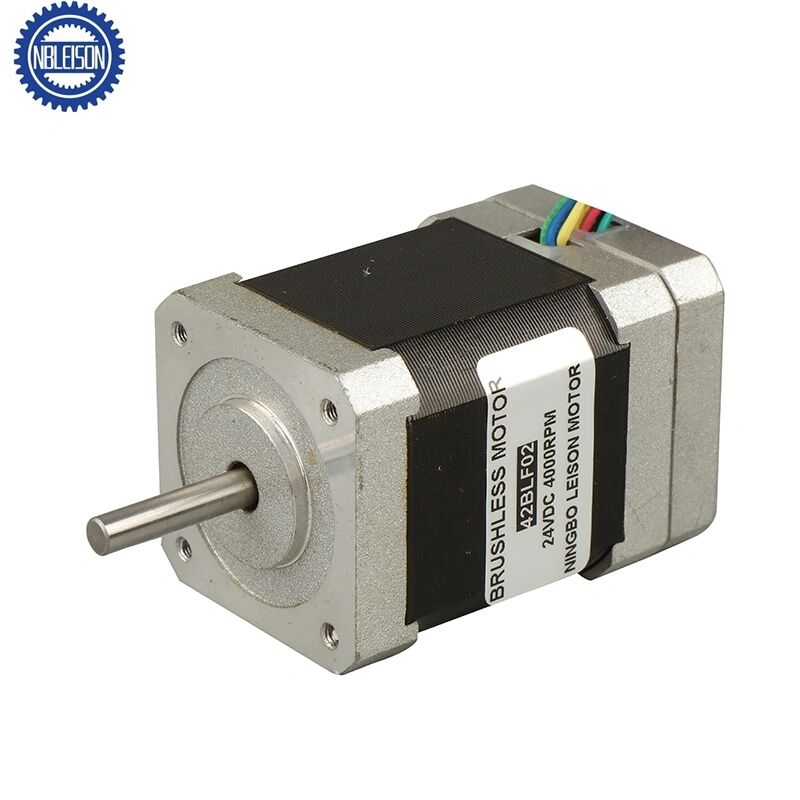

LS-42BLF DC Brushless Motor

Place of Origin:	China
Brand Name:	NBLEISON
Model Number:	LS-42 BLF
Certification:	CE, ROHS, REACH
Minimum Order Quantity:	1PC
Price:
Packaging Details:	Carton, Pallet, Negotiated
Delivery Time:	Standard samples about one week, bulk quantity about 3-4 weeks
Supply Ability:	100, 000pcs/month

Description:

1.Product name: LS-42 BLF DC Brushless Motor

2.Motor type: brushless

3.Construction: Permanent Magnet

4.Number of Poles: 8 or 4

5. Bearing Type: Ball Bearing

6. Rated Voltage: 12V/18V/24V/36V/48V

7. Rated Speed: 1000rpm to 8000rpm customized

8. Output Power: 26-78 W

9. OEM & ODM Service: Available

10. Certificate: CE,ROHS,REACH

11. Encoder: OK

12. Shaft Configuration: D-cut,Round or other type,shaft length can customized

13. Customization item: voltage, speed , torque, shaft, IP rating

14. Additional requirements: Lead wire, connector ,encoder,or other parts

Applications:

Typical application: Micro air pump, Water pump, Robotics, Power tools, Automation equipment, Medical equipment, Textile equipment

General Specifications

Motor Data

Model	Number of Poles	Number of Phases	Rated Voltage	Rated Speed	Rated Torque	Rated Current	Output Power	Peak Torque	Peak Current	Torque constant	Back EMF	Rotor inertia	Body Length	Mass
Model	Number of Poles	Number of Phases	VDC	RPM	N-m	Amps	Watts	N-m	Amps	N-m/Amps	V/KRPM	gem2	mm	kg
42BLF01	8	3	24	4000	0. 063	1. 9	26	0. 18	5. 7	0. 035	3. 7	24	47	0. 33
42BLF02			24	4000	0. 125	3. 4	52	0. 38	10. 2	0. 036	3. 8	48	63	0. 48
42BLF03			24	4000	0. 188	5. 7	78	0. 75	18	0. 036	3. 8	72	79	0. 63
* Note: It's only typical technical data, special requirement can be customized.

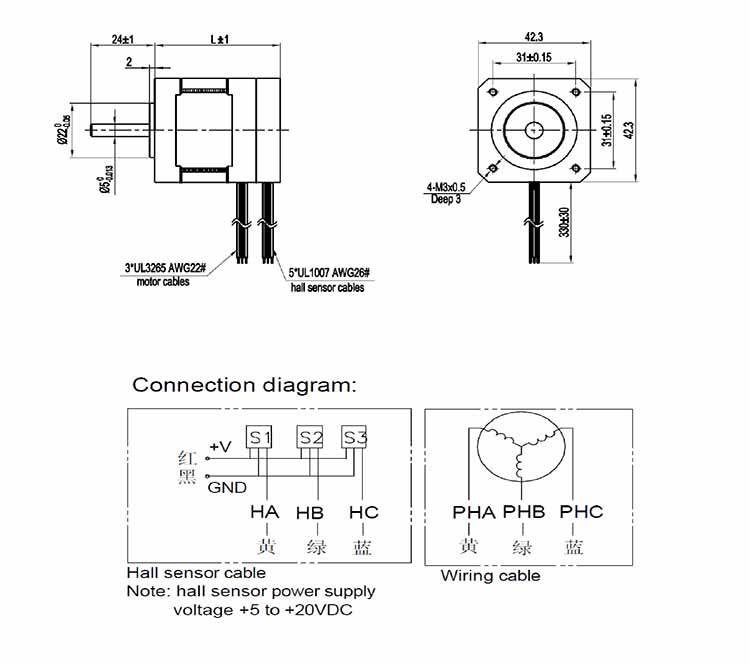

Mechanical Dimensions

*Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.

Competitive Advantage:

1.Brushless type, extremely long working life, suitable for continuous operation.

2.Motor efficiency can reach up to 80-90%.

3.Capable of speed control, reversal, positioning, and other functions, achieving precise control.

4.Customizable according to customer requirements, such as motor leads, terminals, shafts, optional gearboxes, encoders, brakes, etc.

5.100% full inspection before shipment, all products comply with CE and ROHS certifications.

6. Fast delivery, samples of standard products available within a week, bulk delivery in 20-25 days.
