Applications:
Robotics, Smart homeapplicance system, Automatic door lock, Medical Equipment, Vending machine, beauty Apparatus, Baby Caib, Office Automation, etc.
Description:

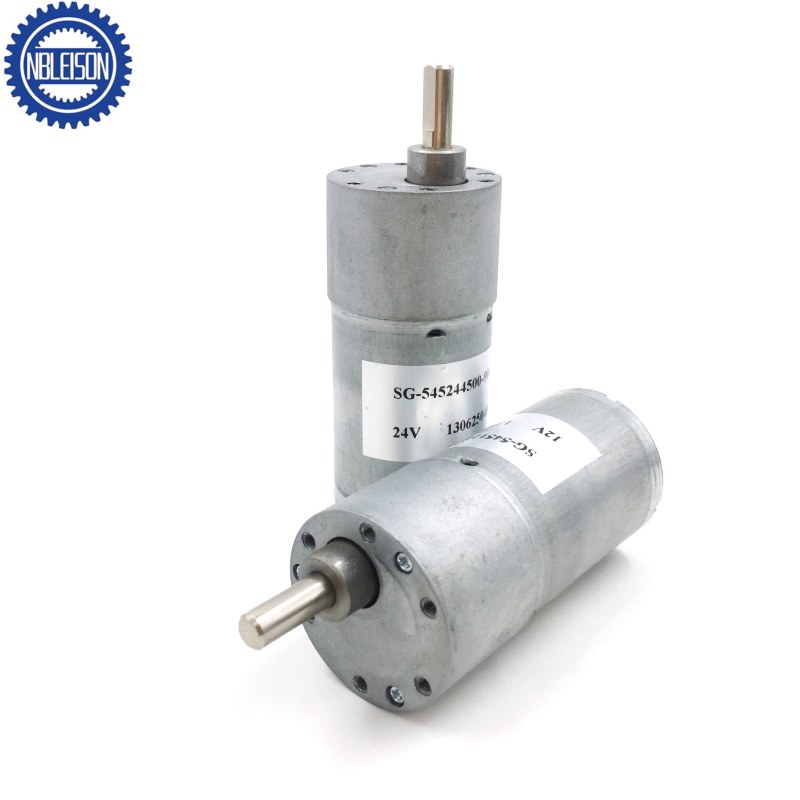

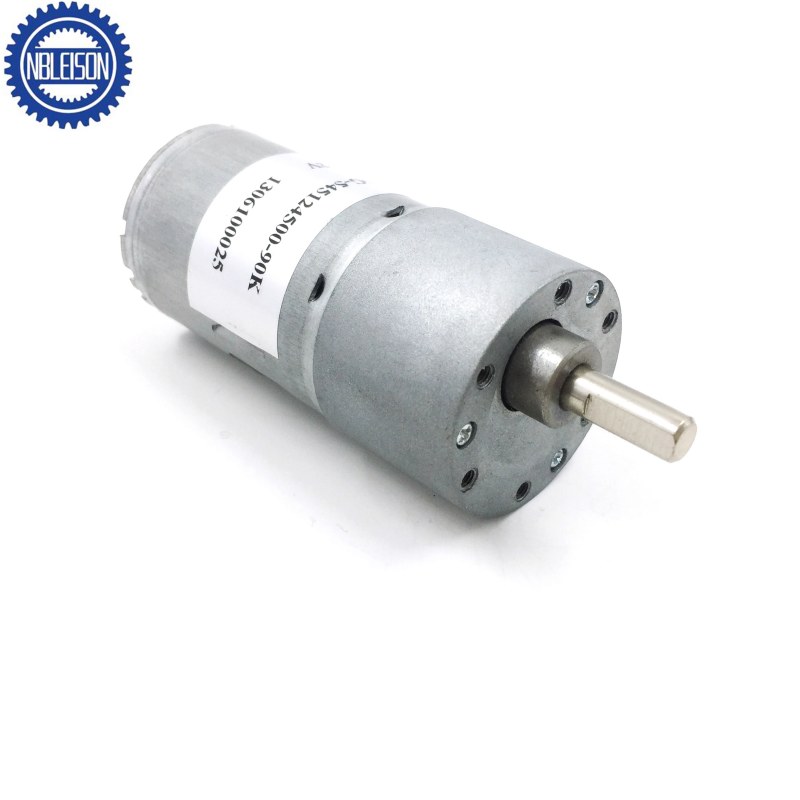

| Product name: | LS-SG545 Dc Gear Motor |
| Motor type: | Carbon-brush commutator |
| Gear type: | Spur gearbox |
| Gear train material: | Metal Gear/Powder Metallurgy Gear Plastic Gear |
| Rotation direction: | CW/CCW reversible |
| Rated Voltage: | 3V/5V/6V/9V/12V/18V/24V/36V/48V |
| Rated Speed: | 1rpm to 2500rpm customized |
| Rated Torque: | 0.2kg.cm-10kg.cm |
| OEM & ODM Service: | Available |
| Certificate: | CE, ROHS, REACH |
| Shaft Configuration: | D-cut,Round or other type,shaft length can customized |
| Customization item: | Voltage, speed , torque, shaft |
| Additional requirements: | Lead wire, connector, IP rating |
Applications:
Robotics, Smart homeapplicance system, Automatic door lock, Medical Equipment, Vending machine, beauty Apparatus, Baby Caib, Office Automation, etc.
| Motor Data |
| Motor Model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| V | mA | r/min | mA | r/min | gf • cm | W | gf • cm | mA | |
| SG-545123000 | 12 | ≤110 | 3000 | ≤450 | 2200 | 100 | 2.2 | 400 | 1800 |
| SG-545124500 | 12 | ≤220 | 4500 | ≤800 | 3300 | 150 | 4.9 | 600 | 3000 |
| SG-545126000 | 12 | ≤350 | 6000 | ≤1500 | 4500 | 200 | 9.0 | 800 | 5500 |
| SG-545243000 | 24 | ≤60 | 3000 | ≤230 | 2200 | 100 | 2.2 | 400 | 900 |
| SG-545244500 | 24 | ≤110 | 4500 | ≤400 | 3300 | 150 | 4.9 | 600 | 1500 |
| SG-545246000 | 24 | ≤150 | 6000 | ≤750 | 4500 | 200 | 9.0 | 800 | 3000 |
| * Note: It's only typical technical data, special requirement can be customized. | |||||||||
How to calculate the motor with gearbox output specs?
1. Output Speed(No-load)=Motor Speed(No-load)/Reduction Ratio
2. Output Torque=Motor Torque*Reduction Ratio*Gearbox Efficiency
e.g.:
SG-545126000-30K
1. Output Speed(No-load)= 6000/ 30=200RPM
2. Output Torque= 200* 30* 73%=4380gf.cm=4.38kgf.cm≈0.43N.m
| Gearbox Data |
| Numberof stages | 2/3 stages reduction | 4/5 stages reduction | 6/7 stages reduction |
| Reduction ratio | 6,10; 20,30 | 60,90; 120,180,270 | 360,540,810 |
| Gearbox length "L" mm | 23.5 | 26 28 | 30 |
| Max. Running torque | 2kgf.cm | 10kgf.cm | 10kgf.cm |
| Max. Gear breaking torque | 8kgf.cm | 30kgf.cm | 30kgf.cm |
| Max.Gearing efficiency | 81%; 73% | 65%; 59% | 53%; 48% |
| Other reduction ratio please telephone or e-mail to our engineering department. | |||

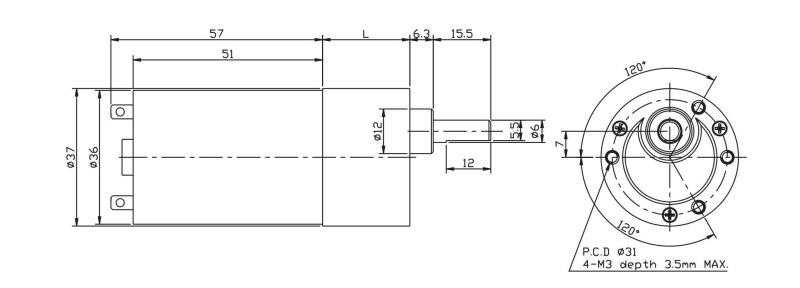

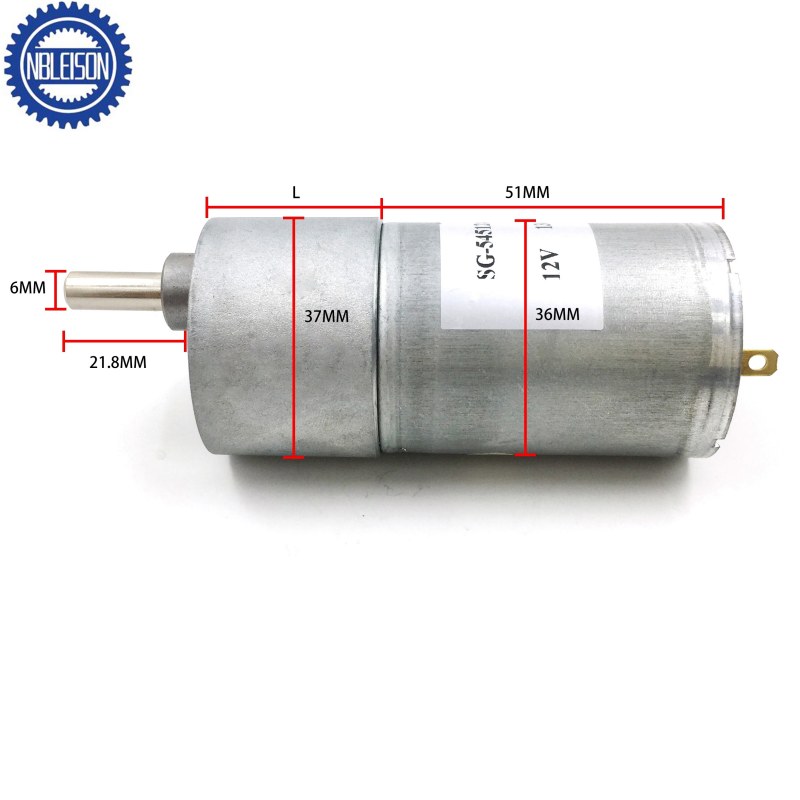

| Mechanical Dimension |
* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
