Applications:
Robotics, Smart homeapplicance system, Automatic door lock, Medical Equipment, Vending machine, beauty Apparatus, Baby Caib, Office Automation, etc.
Description：

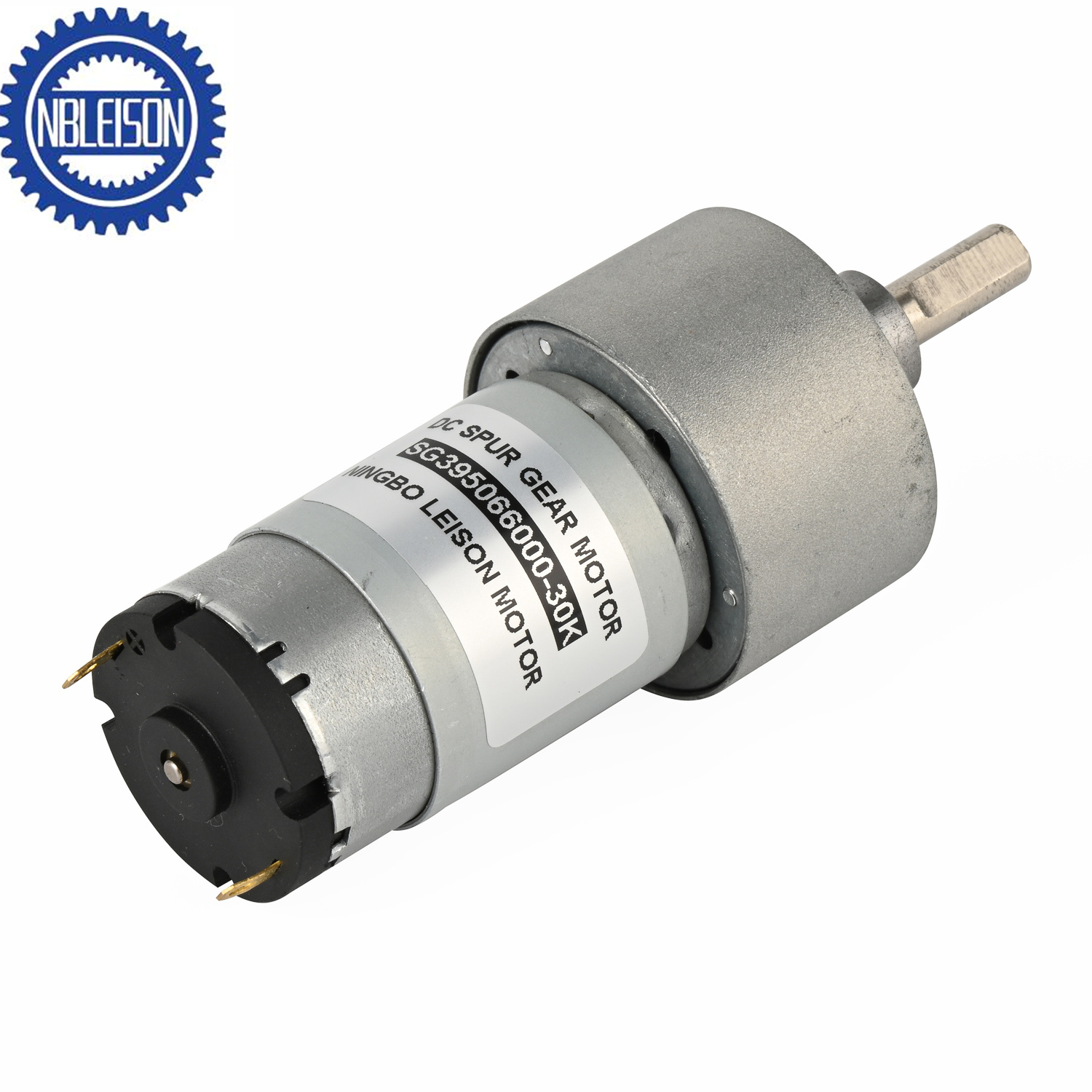

| Product name: | LS-SG395 Dc Gear Motor |
| Motor type: | Carbon-brush commutator |
| Gear type: | Spur gearbox |
| Gear train material: | Metal Gear/Powder Metallurgy Gear Plastic Gear |
| Rotation direction: | CW/CCW reversible |
| Rated Voltage: | 3V/5V/6V/9V/12V/18V/24V/36V/48V |
| Rated Speed: | 1rpm to 2500rpm customized |
| Rated Torque: | 0.2kg.cm-10kg.cm |
| OEM & ODM Service: | Available |
| Certificate: | CE, ROHS, REACH |
| Shaft Configuration: | D-cut,Round or other type,shaft length can customized |
| Customization item: | Voltage, speed , torque, shaft |
| Additional requirements: | Lead wire, connector, IP rating |
Applications:
Robotics, Smart homeapplicance system, Automatic door lock, Medical Equipment, Vending machine, beauty Apparatus, Baby Caib, Office Automation, etc.
| Motor Data |
| Motor Model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| V | mA | r/min | mA | r/min | gf • cm | W | gf • cm | mA | |
| RS-395123000 | 12 | 60 | 3000 | 250 | 2200 | 65 | 1.4 | 260 | 800 |
| RS-395124500 | 12 | 90 | 4500 | 430 | 3300 | 80 | 2.6 | 320 | 1400 |
| RS-395126000 | 12 | 130 | 6000 | 750 | 4500 | 105 | 4.7 | 420 | 2600 |
| RS-395243000 | 24 | 40 | 3000 | 120 | 2200 | 65 | 1.4 | 260 | 400 |
| RS-395244500 | 24 | 50 | 4500 | 220 | 3300 | 80 | 2.6 | 320 | 700 |
| RS-395246000 | 24 | 70 | 6000 | 380 | 4500 | 105 | 4.7 | 420 | 1400 |
| * Note: It's only typical technical data, special requirement can be customized. | |||||||||
How to calculate the motor with gearbox output specs?
1. Output Speed(No-load)=Motor Speed(No-load)/Reduction Ratio
2. Output Torque=Motor Torque*Reduction Ratio*Gearbox Efficiency
e.g.:
SG-395126000-30K
1. Output Speed(No-load)= 6000/ 30=200RPM
2. Output Torque= 105* 30* 73%=2299.5gf.cm≈2.3kgf.cm≈0.23N.m
| Gearbox Data |
| Numberof stages | 2/3 stages reduction | 4/5 stages reduction | 6/7 stages reduction |
| Reduction ratio | 6,10; 20,30 | 60,90; 120,180,270 | 489,540,810; 1620,2430 |
| Gearbox length "L" mm | 22.5 | 25 27 | 29 |
| Max. Running torque | 2kgf.cm | 10kgf.cm | 10kgf.cm |
| Max. Gear breaking torque | 8kgf.cm | 30kgf.cm | 30kgf.cm |
| Max.Gearing efficiency | 81%; 73% | 65%; 59% | 53%; 48% |

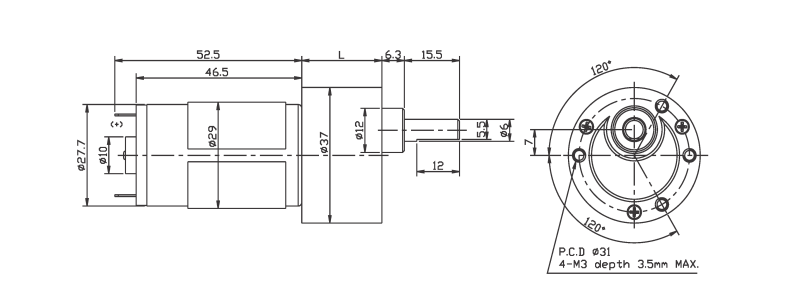

| Mechanical Dimension |
* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
