Application：
Robotics, Automation equipment, Packaging equipment, Medical equipment, Solar equipment, Pump, Food processor, Robot Lawn Mower etc;
Description:

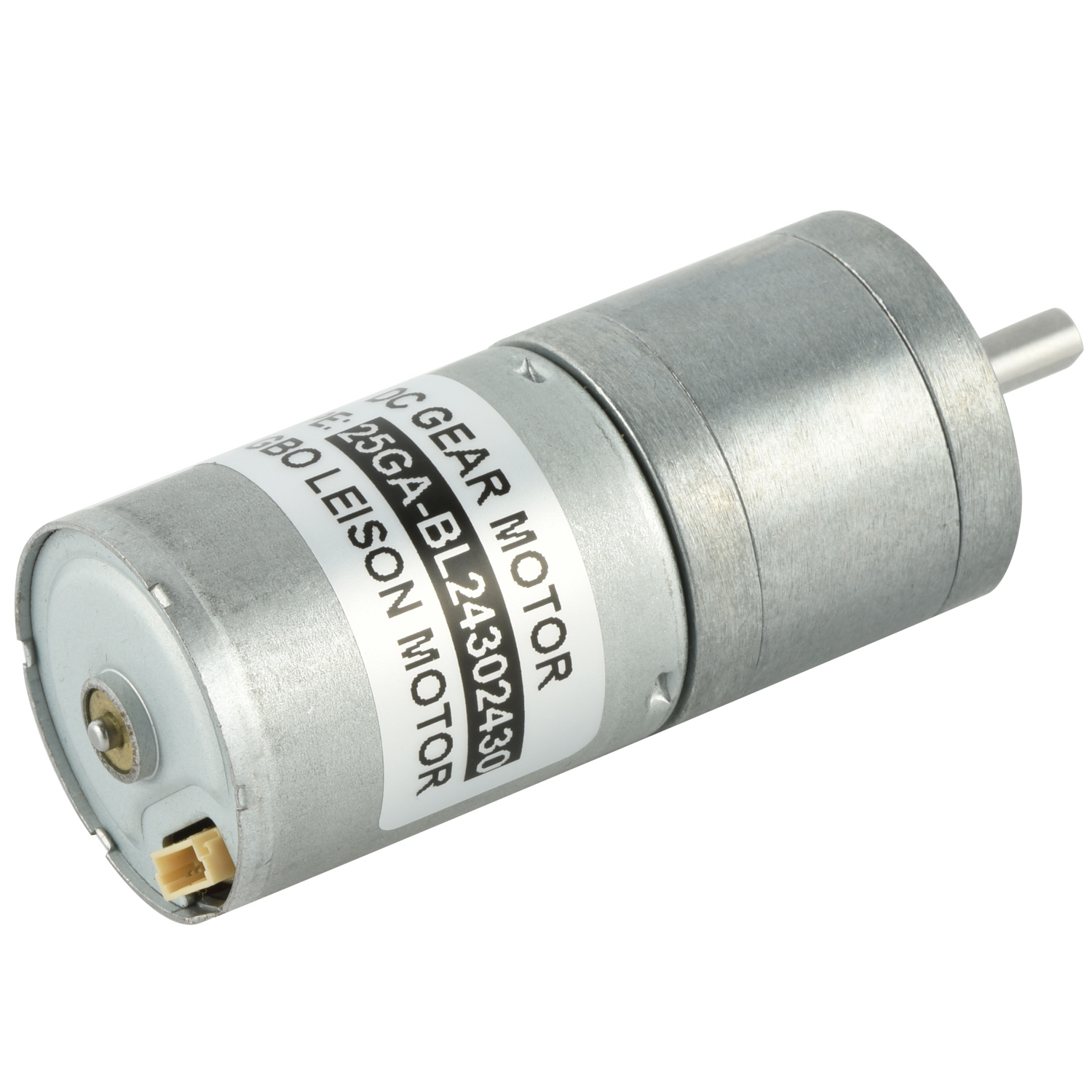

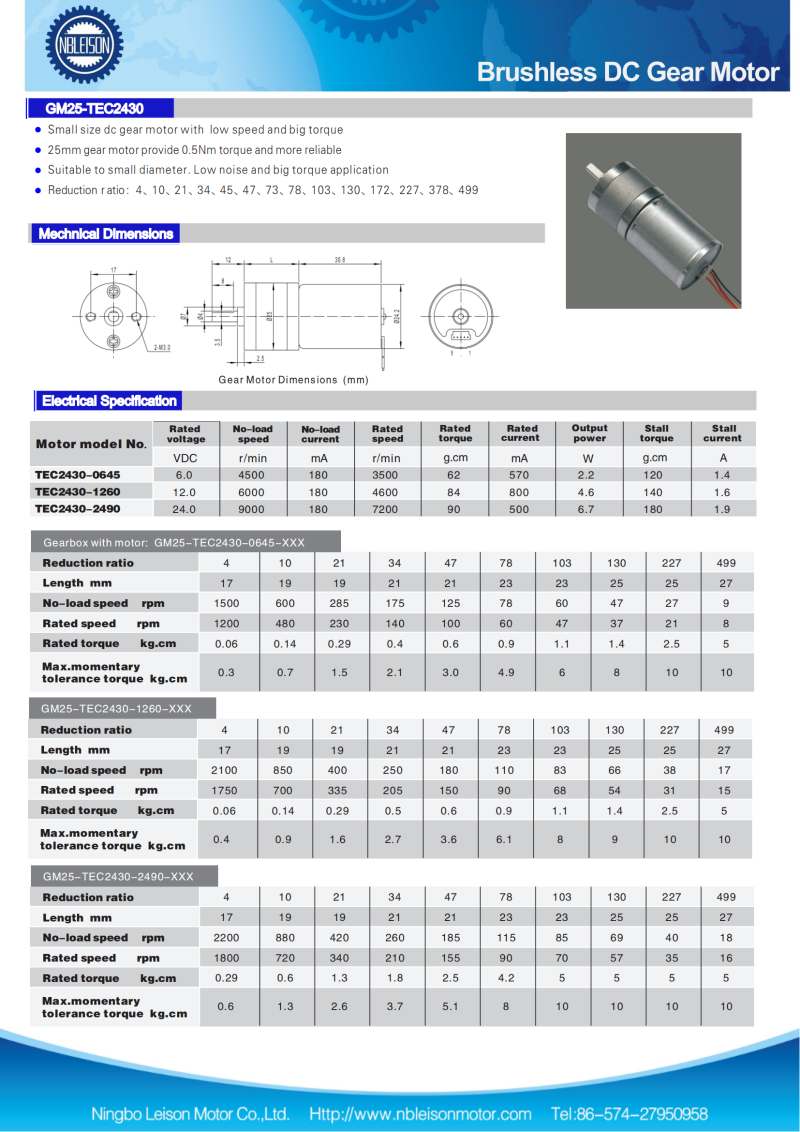

| Product name: | LS-GM25-TEC2430 Brushless Dc Spur Gear Motor |
| Motor type: | carbon-brush commutator |
| Gear type: | Spur gearbox |
| Gear train material: | Metal Gear/Powder Metallurgy Gear Plastic Gear |
| Rotation direction: | CW/CCW reversible |
| Rated Voltage: | 3V/5V/6V/9V/12V/18V/24V |
| Rated Speed: | 1rpm to 2500rpm customized |
| Rated Torque: | 0.5kg.cm-10kg.cm |
| OEM & ODM Service: | Available |
| Certificate: | CE,ROHS,REACH |
| Shaft Configuration: | D-cut,Round or other type,shaft length can customized |
| Customization item: | voltage, speed , torque, shaft |
| Additional requirements: | Lead wire, connector,IP Rating |
Applications:
Robotics, Automation equipment, Packaging equipment, Medical equipment, Solar equipment, Pump, Food processor, Robot Lawn Mower etc;
