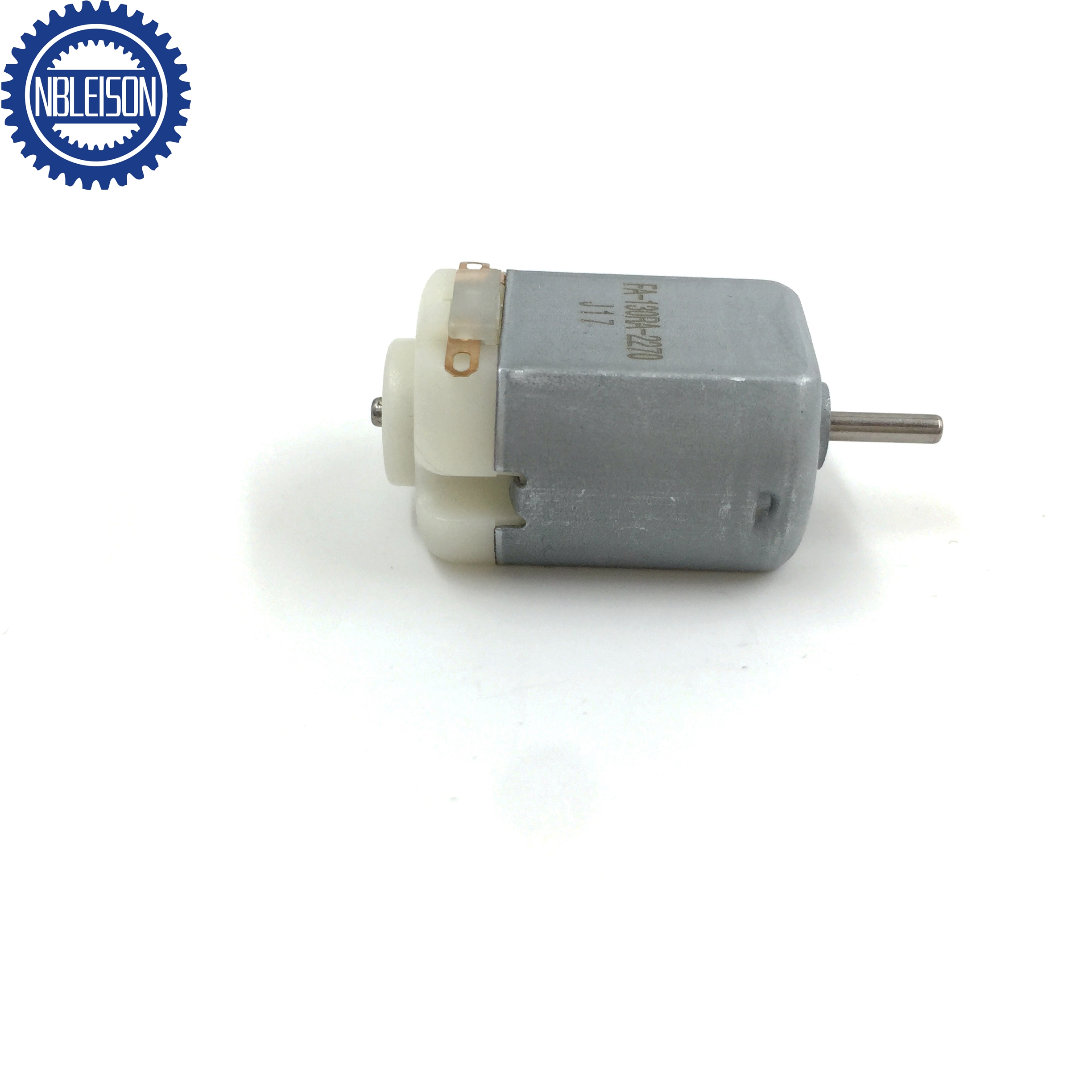

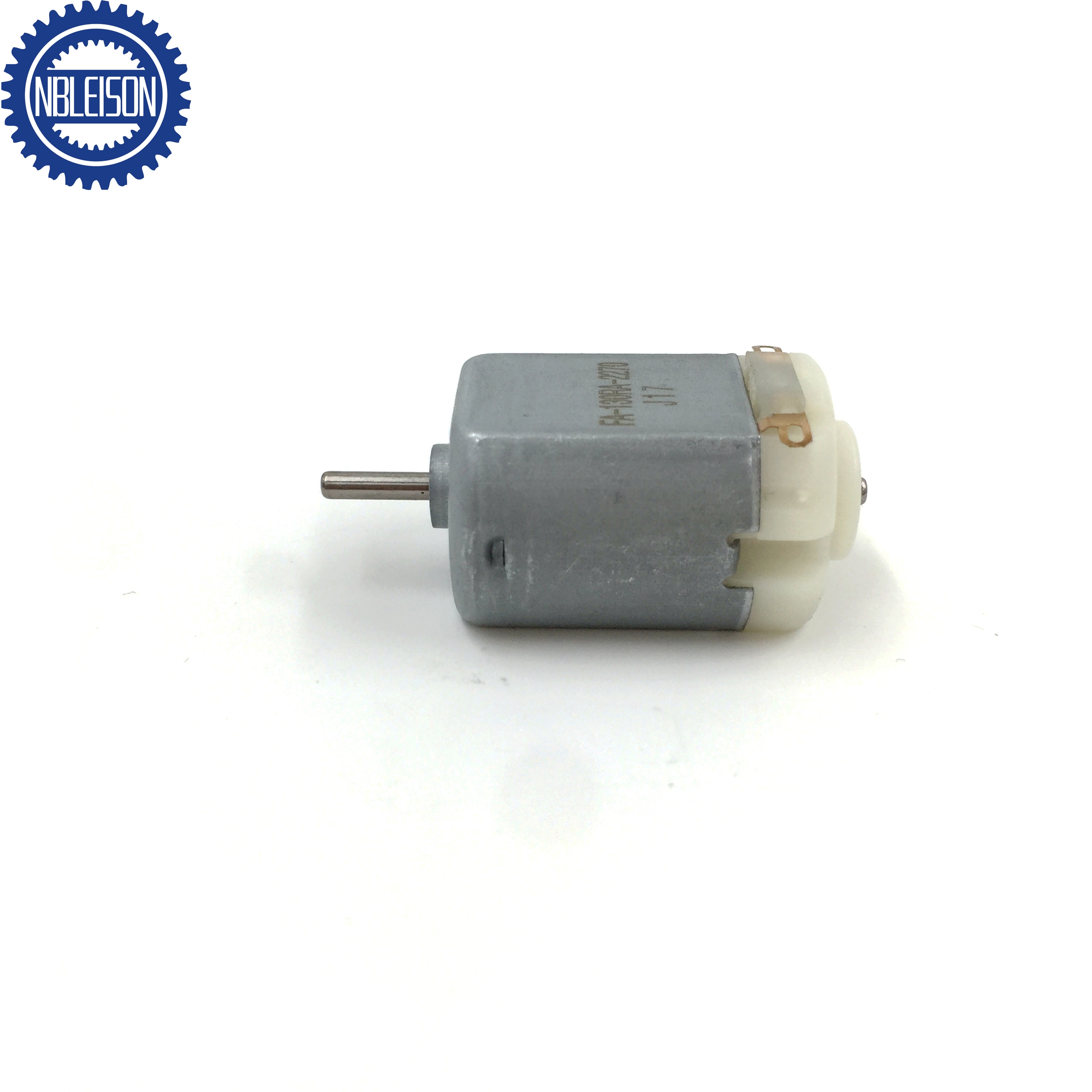

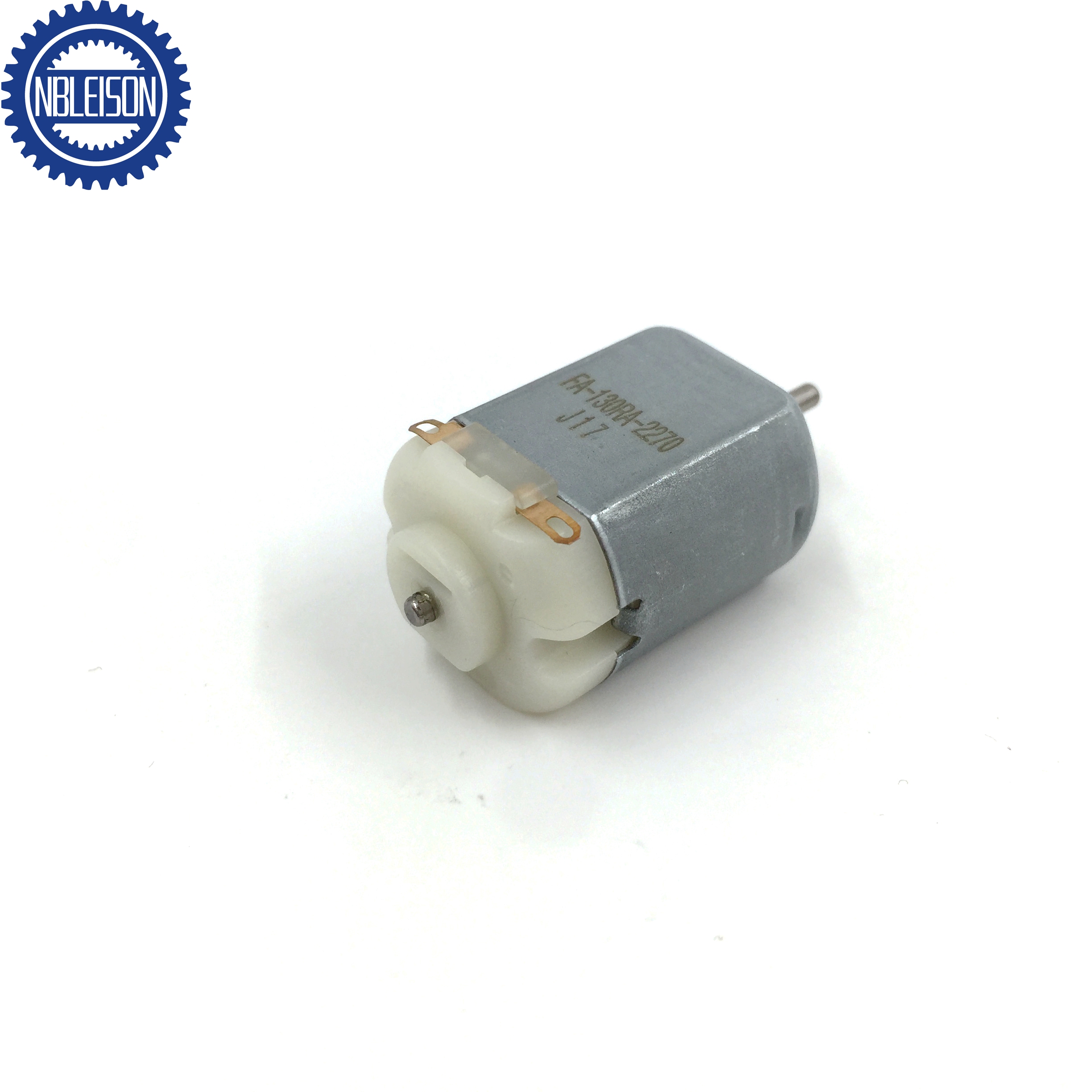

LS-FA130 Dc Micro Motor

Applications:

Water pump, air pump, coffee machine, hair dryer, fan, vacuum cleaner, power tools, garden tools, etc

Description:

Product name:	LS-FA130 Dc Micro Motor
Motor type:	Carbon-brush commutator
Shaft type:	Carbon Steel
Bearing Type:	Sleeve Bearing
Rotation direction:	CW/CCW reversible
Rated Voltage:	3V/5V/6V/9V/12V/18V/24V/36V/48V
Rated Speed:	1000rpm to 25000rpm customized
Output Power:	0.1-2W
OEM & ODM Service:	Available
Certificate:	CE, ROHS, REACH
Encoder:	Magnetic encoder
Shaft Configuration:	D-cut, Round or other type, shaft length can customized
Customization item:	Voltage, speed, torque, flange, shaft, IP rating
Additional requirements:	Lead wire, connector, gearbox, encoder, or other parts

Applications:

Water pump, air pump, coffee machine, hair dryer, fan, vacuum cleaner, power tools, garden tools, etc

Motor Data

Model	Voltage		No Load		At Maximum Efficiency					Stall
	Operating Range	Nominal	Speed	Current	Speed	Current	Torque		Output	Torque		Current
	Operating Range	Nominal	r/min	A	r/min	A	mN-m	g-cm	w	mN-m	g-cm	A
FA-130RA-2270	DC1.5-3.0V	DC1.5V	9100	0.2	6990	0.66	0.59	6	0.43	2.55	26	2.2
FA-130RA-2270	DC1.5-3.0V	DC3V	16400	0.23	13200	0.95	0.84	8.6	1.16	4.32	44	3.92
FA-130RA-18100	DC1.5-3.0V	DC1.5V	6200	0.15	4540	0.41	0.47	4.8	0.22	1.76	18	1.12
FA-130RA-18100	DC1.5-3.0V	DC3V	12300	0.15	9710	0.56	0.74	7.6	0.76	3.53	36	2.1
FA-130RA-14150	DC1.5-4.5V	DC3V	8300	0.11	6150	0.31	0.55	5.6	0.35	2.11	22	0.9
FA-130SA-2270	DC1.5-3.0V	DC3V	13000	0.2	10650	0.91	1.24	12.7	1.38	6.86	70	4.1
FA-130SA-18100	DC1.5-4.5V	DC3V	9300	0.14	7350	0.53	1.03	10.5	0.79	4.91	50	2
FA-130SA-14150	DC1.5-4.5V	DC3V	6200	0.08	4780	0.27	0.74	7.6	0.37	3.23	33	0.9
*Note:lt's only typical technical data for reference, special requirement can be customized.

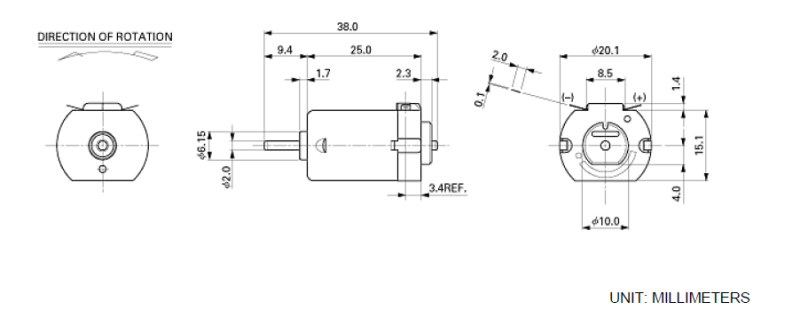

Mechanical Dimension

800

*Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
